1. Multi-tier complete set of layer raising equipment, is the highest degree of automation and scientific and technological content current cage poultry raising equipment.
2. It represents the development direction of large-scale, intensive poultry farming equipment.

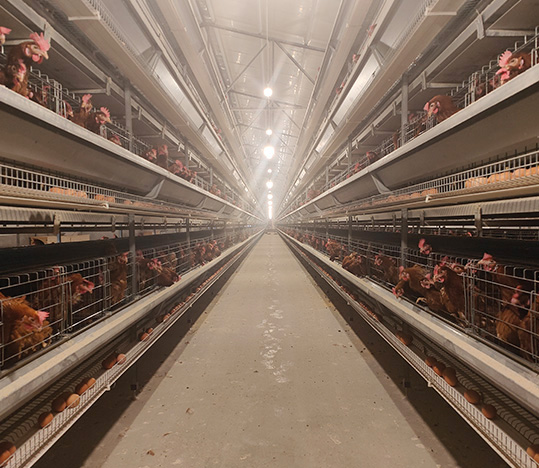

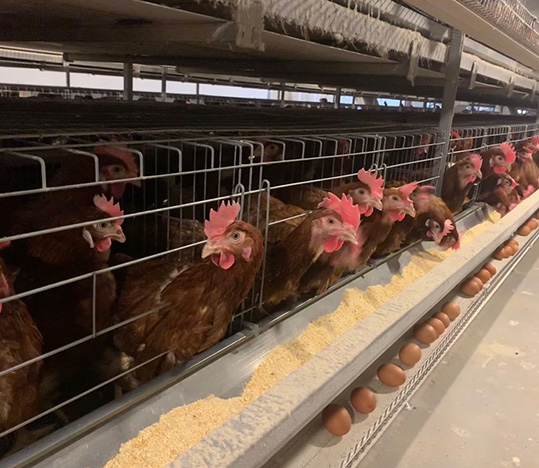

H type chicken layer cage is suitable for large-scale chicken farms. It is recommended for poultry farms rearing over 20000 birds.As a typical battery cage, H type chicken cage is well accepted by more and more livestock farms.House using the battery cage systems can be left unattended. And keep the flocks completely separate to prevent the spread of disease.The H type layer cage system has a high degree of automation and high density.The vertically stacked cages save more floor space, increase rearing number, reduce cost in manpower and management and eventually bring considerable profit for chicken growers.
1. The main material of the equipment is hot dip galvanized steel. The life time can reach 15-20 years.
2. Advanced equipment:cage wire use advanced hot-dip galvanized proceesing after welding, which is resistant to corrosion,have long service life, over 25 years lifespan; cages are the preferred equipment for industrial and intensive farming.
3. Intensive management and full automatic system including feeding system, drinking system, egg collecting system, environmental control system, cleaning manure system can improve the rate of labor productivity and save the labor costs.
4. High-density breeding of up to 12 layers can be realized to save land and reduce construction investment and management costs.
5. Medicine cost reduction: H type layer chicken cage adopts a fully enclosed breeding mode to realize the separation of humans and chickens, greatly improve the environment of poultry house, and reduce the invasion and mortality of foreign diseases.
6. Xinfeng Poultry chicken cages for layers make the inspection of layers easier, because the poultry layer cage provides a good view of the laying chicken.
7. Layered treatment of chicken manure and natural air drying greatly reduce the moisture content of chicken manure .
8. Suitable for closed chicken shed, with automatic ventilation and temperature control system, to ensure that the environment of shed inside meets the needs of chickens.
|
Cage |
Cage Size:(L*W*H) |
Birds/Cell |
Cells/set |
Tiers |
Capacity/Set |
Density/Birds |
|
H type layer cage |
1200*1200*700mm |
8 |
12 |
3 |
96 |
450cm2 |
|
H type layer cage |
1200*1200*700mm |
8 |
16 |
4 |
128 |
450cm2 |
|
H type layer cage |
1200*1200*700mm |
8 |
20 |
5 |
160 |
450cm2 |
|
H type layer cage |
1200*1200*700mm |
8 |
24 |
6 |
192 |
450cm2 |
|
H type layer cage |
1200*1200*700mm |
8 |
28 |
7 |
224 |
450cm2 |
|
H type layer cage |
1200*1200*700mm |
8 |
32 |
8 |
256 |
450cm2 |
|
H type layer cage |
1800*1260*700mm |
6 |
24 |
3 |
144 |
472.5cm2 |
|
H type layer cage |
1800*1260*700mm |
6 |
32 |
4 |
192 |
472.5cm2 |
|
H type layer cage |
1800*1260*700mm |
6 |
40 |
5 |
240 |
472.5cm2 |

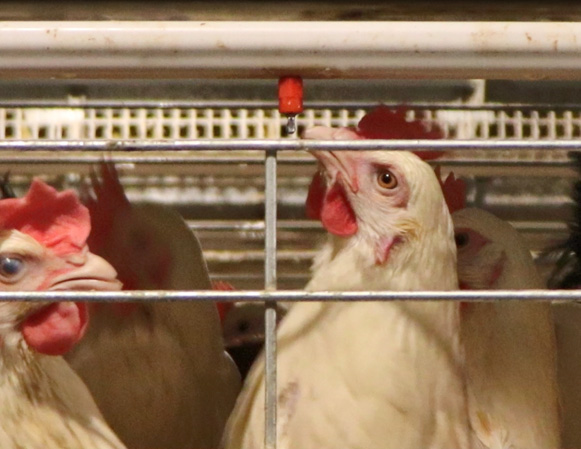

1. Drinking system include the water pipes, water pressure adjuster, drinking nipples, Waterline front-end device, dosing system etc, choose them according to customer's needs.
2. High-quality water drinking pipes, pressure regulating valves and water drinking nipples can effectively prevent the water leakage. Drinking system adopt the closed piping system, which can minimize the water pollution.
3. 360-degree drinking nipples provide adequate drinking water for poultry at all stages.
4. The automatic drinking water system mainly adopts the steel ball drinking nipple. lt uses imported high-grad stainless steel, POM resin, and APS engineering material, which is wearing resistant, and the durability can be used for long time.

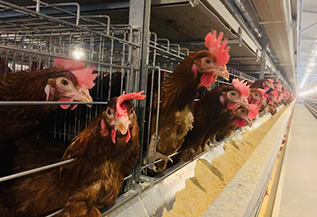

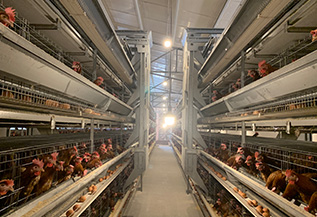

1. Automatic feeding machine can be chosen between gantry and ladder feeding machine. Gantry type feeding machine is a relatively economical and practical machine with simple operation, remote control walking character, easy to manage.
2. Mechanical transmission device running smoothly, low noise, long service life.
3. With the use of automatic control, the feeding system can adjust the amount of material.
4. Feeding with arched structure, high carrying capacity, not easily deformed.
5. Saving man power, saving feed, greatly improving the efficiency of Large-scale farming.
6. Feeding machine speed is 10-15m/min.
Silo
Main feeding line
Feeding machine
Hot-galvanized Feed trough
1. Manure removing system for H type is belt type, Which can reduce the labor intensity and labor cost, keep the chicken shed dry and clean.
2. The chicken manure is conveyed to the horizontal manure removal belt at the end of the house through the vertical manure removal belt, and then is sent to the outside of the chicken house or directly to the truck through the oblique manure removal belt.
3. Each tier of chicken cages is equipped with a manure cleaning belt, the chickens are not in contact with the manure, the chicken manure is cleaned regularly, and the concentration of harmful gases such as ammonia and hydrogen sulfide is lower, which can improve the breeding environment of the chicken house and reduce the incidence of poultry diseases
4. The manure removing belt we use is high quality PP material (polypropylene), which can be used for at least 10 years.
5. The walking speed is 2-4 meters per minute.

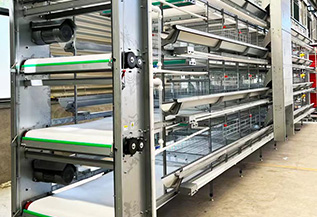

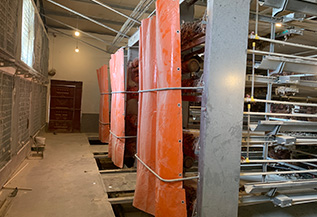

Automatic Manure removing system
Automatic Manure removing system

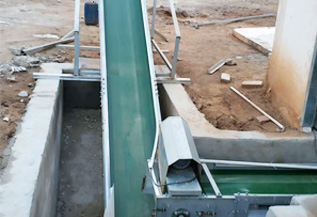

Horizontal and oblique manure removing system
Deliver to the truck

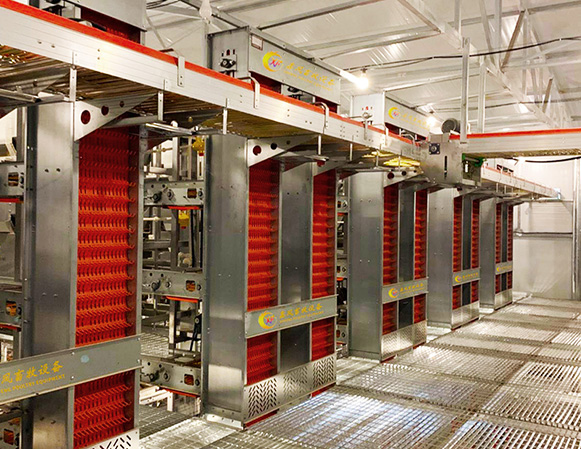

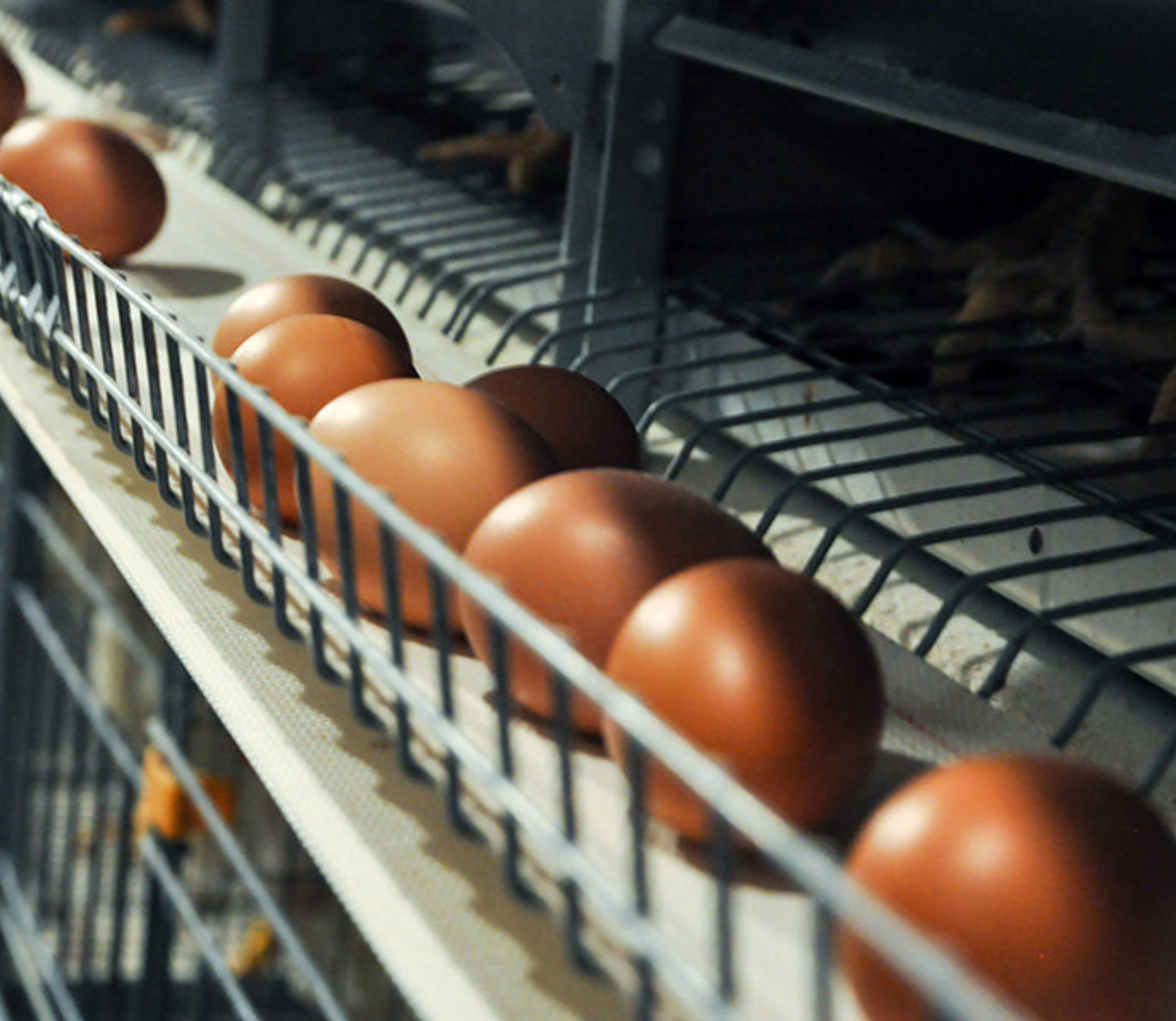

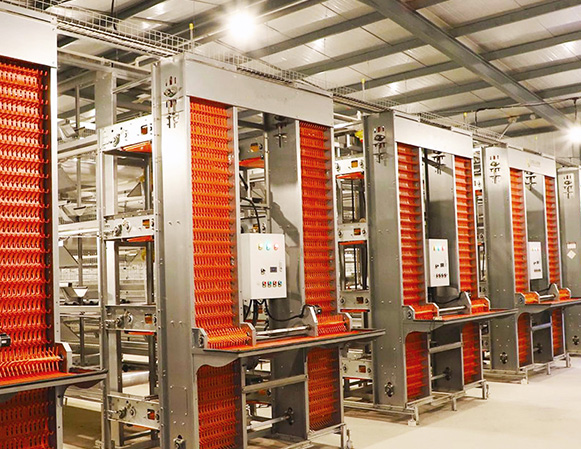

1. Eggs can be buffered before rolling onto the egg collection belt, which can effectively reduce the number of broken eggs.
2. The horizontal egg feeding part can effectively filter broken eggs and soft-shell eggs to avoid mutual contamination during egg collection.
3. Eggs can be delivered to the egg operation table according to customer requirements, or directly to the egg storage.
4. The walking speed is 5-6 meters per minute.
5. Take the 80 meters chicken house as an example: the eggs can be collected in 20-30 minutes.
1. It has professional designed angle of the blade. After the dynamic balance test one by one, the blade can operate smoothly.
2. The air volume is consistent in the whole life of the fan. Bearings has advantage of high strength, low noise, durable and so on.
1. The cooling pad uses high-quality wet curtain paper and adopts space cross-linking technology, which has the advantages of high water absorption, high water resistance, anti-toxicity and long service life.
2. The cooling efficiency is over 80%, without surfactant, natural water absorption, fast diffusion speed and long-lasting effect.
3. The product does not contain phenol and other chemical substances that are easy to cause skin allergies. It is non-toxic and harmless to the human body and chicken when installed and used. It is green, safe, energy-saving, environmentally friendly, economical, and easy to install.
4. The frame aluminum alloy has high strength, good corrosion resistance, durability and beautiful appearance; Use a special filter for the cooling pad at the upper water to ensure clean water quality and support efficient water circulation components.
5. Combined with a negative pressure fan, it can effectively lower the indoor temperature.
The window is made of special selected high-quality engineering plastic, with high strength and long service life, together with superior anti-aging and anti-UV performance.
Function: Ventilation of the chicken house, usually used in the winter.
This system can adjust the wind speed and direction, thus the cold air will not reach chicken directly , which can effectively prevent the phenomenon of cold stress in chicken.
Environmental control system equipment is suitable for large-scale and intensive farming. According to customer requirements, we can provide various types of smart poultry equipment.
1. Our poultry management system is a modular system that manages all aspects of the chicken house, such as climate, temperature, humidity, ammonia, feeding, feed weighing, lighting and ventilation systems, and can monitor the situation of the chicken house in real time through a computer and mobile phone.
2. The management computer is the heart of the poultry farm, allowing you to easily monitor the entire poultry farm.
